Foundation/Rebar Mappings (Regular and Non-Destructive)

  • Documents foundation dimensions, depth, rebar layout, and concrete condition using traditional or non-destructive methods

  • Non-destructive technology locates and assesses reinforcing steel without breaking ground or damaging existing concrete

  • Determines whether an existing foundation can safely support increased loading from new equipment or modifications

  • Saves time and reduces site disruption compared to invasive investigation methods

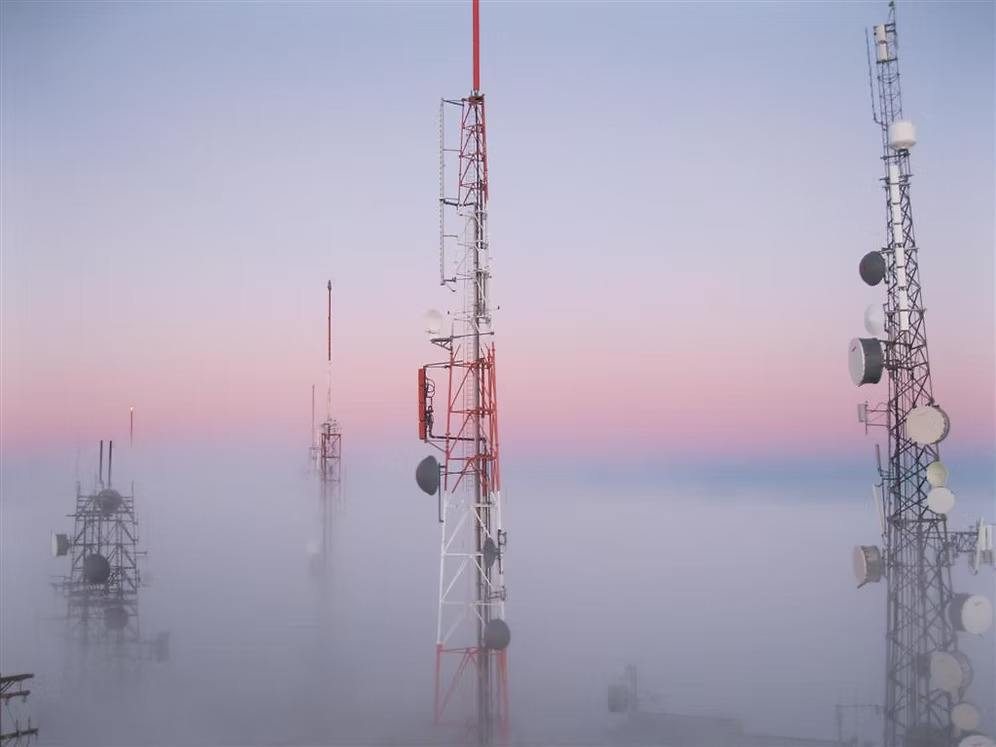

A tower is only as strong as the foundation it stands on, yet foundations are often the least-understood element of a structure. Our foundation mapping services document the dimensions, depth, rebar layout, and concrete condition of existing tower foundations — either through traditional methods or advanced non-destructive techniques. This data is essential when evaluating whether an existing foundation can support increased loading from new equipment or modifications.

Non-destructive rebar mapping uses specialized technology to locate and assess reinforcing steel without breaking ground or damaging the concrete. This approach saves time, reduces cost, and eliminates unnecessary disruption to the site. Whether you need a simple dimensional survey or a full subsurface rebar analysis, our team delivers the detail engineers and owners require to move forward with confidence.
